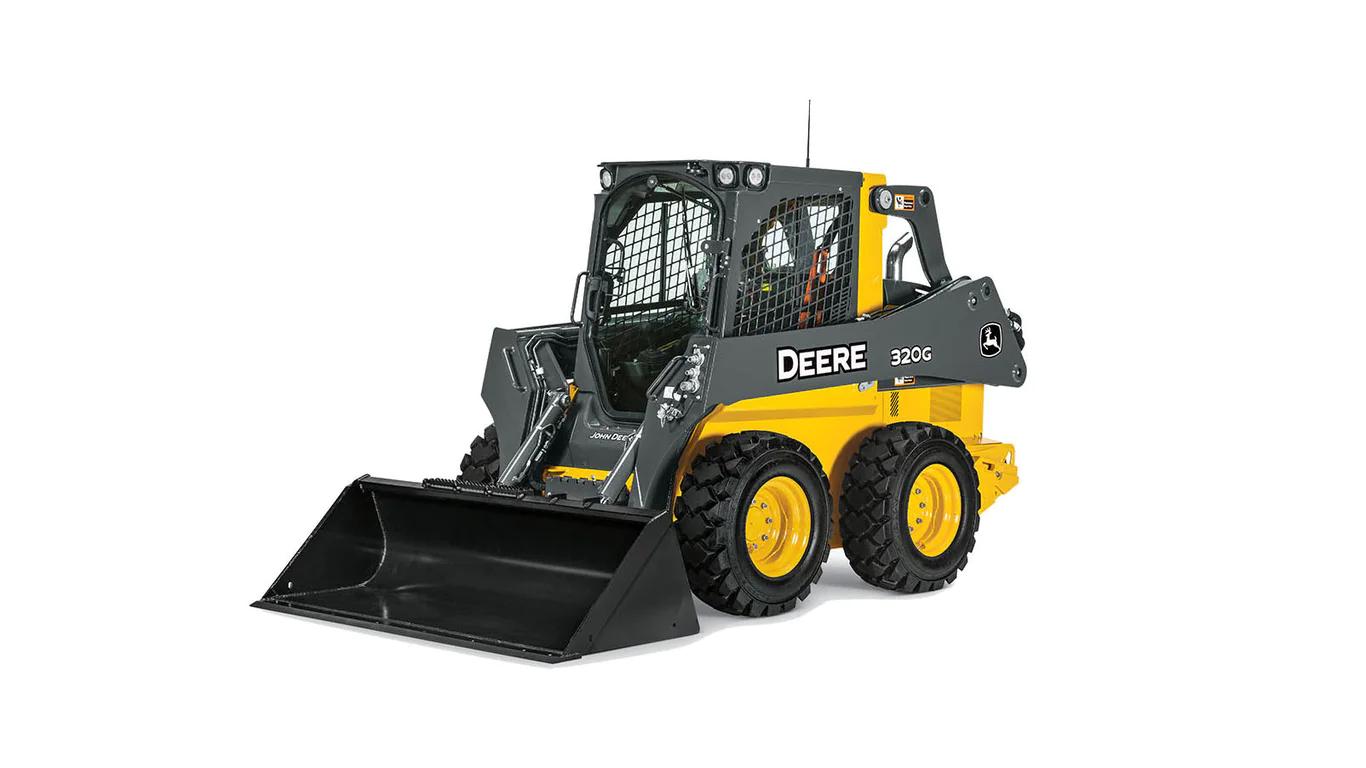

Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.
Redesigned cab features an improved door seal with integrated chinstrap and glove-friendly removable side windows.
Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.
With the universal Quik-Tatch,™ you can go from skid steer bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, roller levels, trenchers, or power rakes, to list just a few.
Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
Optional JDLink™ provides machine data and health alerts to help you decrease costly downtime.
Industry-leading bucket breakout forces and auxiliary flow
Select a category to view specifications (or view all).
Dimensions
Dump Height - Maximum Foundry, mm (inches)
2480 (97.7)
Dump Angle, Degrees
43
Height to Hinge Pin, mm (inches)
3100 (122.2)
Rear Departure Angle, Degrees
28
Ground Clearance, mm (inches)
240 (9.3)
Rollback - Ground Level, Degrees
33
Length - With Bucket Foundry, mm (inches)
2460 (136.3)
Overall Height, mm (inches)
2060 (81.1)
Wheelbase, mm (inches)
1120 (44.2)
Width - No Bucket, mm (inches)
1700 (67)
Length - No Bucket, mm (inches)
2850 (112.3)
Reach - Max Dump Height Foundry, mm (inches)
740 (29.2)
Performance
Axle Torque - Maximum, Nm (lbf / ft)
6771 (4994)
Breakout - Bucket Foundry, kN (lbf)
26.6 (6000)
Pump Flow - Option, lt/min (gallons (US) / min)
112 (30)
Speed - Maximum, kph (mph)
11.1 (6.9)
System Pressure, bar (PSI)
224.08 (3250)
Pump Output, lt/min (gallons (US) / min)
78 (21)
Hydraulic Power, kW (hp)
28.842 (38.6)
Hydraulic Power - Option, kW (hp)
41.414 (55.5)
Rated Operating Capacity - Foundry, kg (lbs)
994 (2190)
Tipping Load - Foundry, kg (lbs)
1989 (4380)
Rated Operating Capacity - Optional Counterweight Foundry, kg (lbs)
Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.
Redesigned cab features an improved door seal with integrated chinstrap and glove-friendly removable side windows.
Engine
Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.
Attachment-Ready
With the universal Quik-Tatch,™ you can go from skid steer bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, roller levels, trenchers, or power rakes, to list just a few.
Uptime
Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
Optional JDLink™ provides machine data and health alerts to help you decrease costly downtime.
Productivity
Industry-leading bucket breakout forces and auxiliary flow
Specifications
Dimensions
Dump Height - Maximum Foundry, mm (inches)
2480 (97.7)
Dump Angle, Degrees
43
Height to Hinge Pin, mm (inches)
3100 (122.2)
Rear Departure Angle, Degrees
28
Ground Clearance, mm (inches)
240 (9.3)
Rollback - Ground Level, Degrees
33
Length - With Bucket Foundry, mm (inches)
2460 (136.3)
Overall Height, mm (inches)
2060 (81.1)
Wheelbase, mm (inches)
1120 (44.2)
Width - No Bucket, mm (inches)
1700 (67)
Length - No Bucket, mm (inches)
2850 (112.3)
Reach - Max Dump Height Foundry, mm (inches)
740 (29.2)
Performance
Axle Torque - Maximum, Nm (lbf / ft)
6771 (4994)
Breakout - Bucket Foundry, kN (lbf)
26.6 (6000)
Pump Flow - Option, lt/min (gallons (US) / min)
112 (30)
Speed - Maximum, kph (mph)
11.1 (6.9)
System Pressure, bar (PSI)
224.08 (3250)
Pump Output, lt/min (gallons (US) / min)
78 (21)
Hydraulic Power, kW (hp)
28.842 (38.6)
Hydraulic Power - Option, kW (hp)
41.414 (55.5)
Rated Operating Capacity - Foundry, kg (lbs)
994 (2190)
Tipping Load - Foundry, kg (lbs)
1989 (4380)
Rated Operating Capacity - Optional Counterweight Foundry, kg (lbs)
