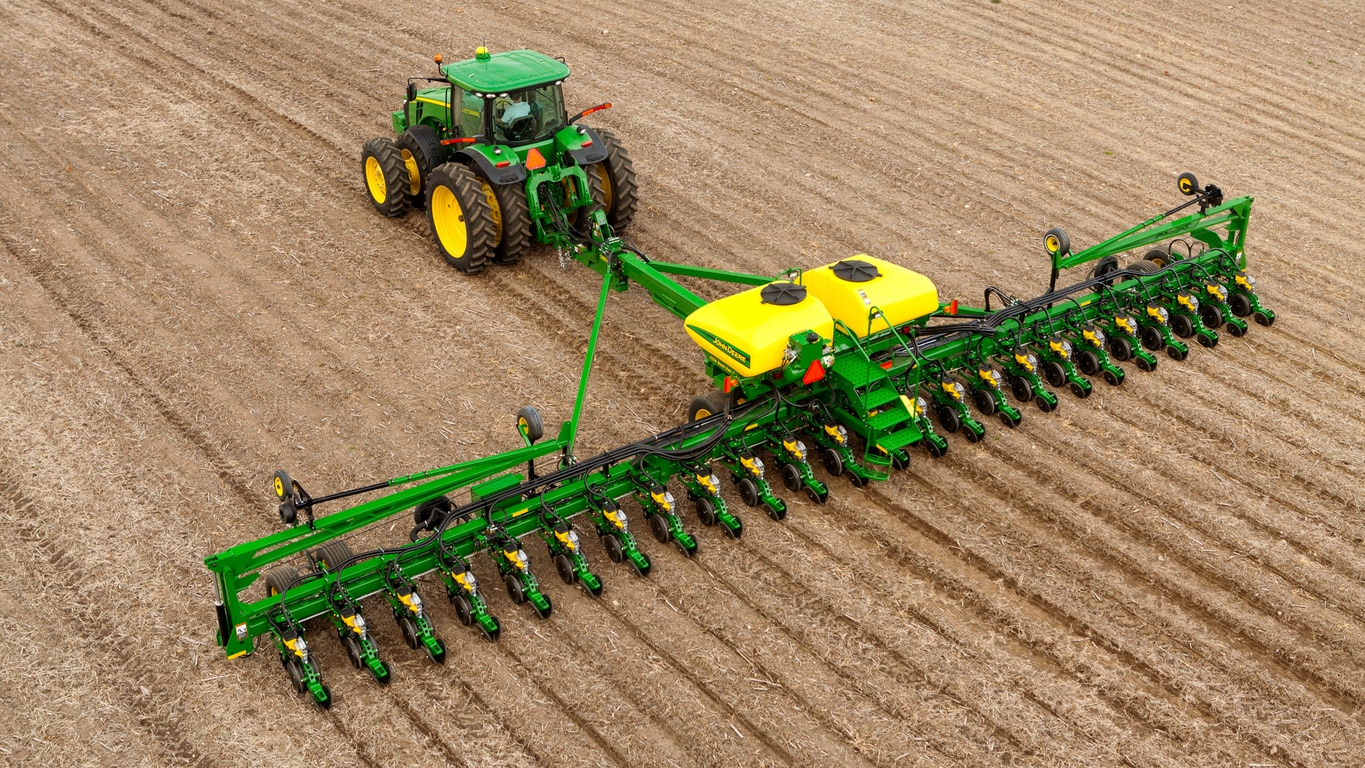

John Deere DB80 48Row20 Planter
- 80-ft. toolbar with 48 rows on 20-in. spacing
- Available with MaxEmerge™ 5 row unit
- Requires a minimum 350-hp tractor equipped with Category 4 drawbar
Description
Increase visibility with planter auxiliary camera
Planter auxiliary cameraThe planter auxiliary camera utilizes an adjustable magnetic mounting base. This allows customers the ability to move and adjust the field of view to see what’s most important to them.
- Camera is integrated into the SeedStar™ 5 planter Ethernet system, video is streamed to the CommandCenter™ display
- Camera is mounted to an adjustable magnetic base allowing customers full adjustability of their field of view
- Configurable with existing programmable video triggers
- Compatible with model year 2025 and newer SeedStar 5 planters and performance upgrade kits
- Mirror image view and adjust field of view from the video app on the G5 CommandCenter™ display
Adjustable magnetic camera mounting bracketImprove liquid fertilizer tendering logistics with fertilizer level sensors
Picture of the liquid fertilizer level sensorLiquid fertilizer level sensing is available on model year 2026 electric drive planters.
Fertilizer level sensing allows farmers to know how much liquid fertilizer is left in the tank from the convenience of the cab. The fertilizer level is displayed on the G5 CommandCenter™ Display in the SeedStar™ app.
- Better coordinate fertilizer tendering plans by knowing how many total gallons of liquid fertilizer are left on the planter.
- See total gallons of liquid fertilizer left on both planter and tractor if tractor is equipped with ExactRate™ tractor tanks.
- Enables customizable low fertilizer tank level warning alarms to prevent running out of liquid fertilizer.
- Fertilizer tender drivers and farm managers can remotely view fertilizer tank levels from a smart connected device using the John Deere Operations Center™ mobile app.
- Removes the need for the operator to manually set the fertilizer tank volume and enter the specific gravity.
View cumulative fertilizer tank levels on both 8RX ExactRate tanks and planter liquid fertilizer tank levels on the G5 CommandCenter DisplayImprove seed tendering logistics with CCS™ tank level sensors
CCS tank levels displayed in the SeedStar™ applicationSeed level sensing is available on all model year 2026 electric drive planters equipped with Central Commodity System (CCS) tanks operating on the SeedStar™ 5 planter application.
Seed level sensing gives farmers better knowledge of planter seed levels. This reduces the risk of running out of seed while planting also allowing farmers to better manage seed tendering logistics to have the seed in the right place at the right time.
View individual and total tank levels from the G5 CommandCenter™ display in the SeedStar app:
- Better plan tendering logistics with seed volume or seed percentage remaining
- Remotely view seed tank percent levels from your computer using John Deere Operations Center™ or from your connected smart device using the John Deere Operations Center mobile app
- Individual tank level displayed helps farmers prevent one tank emptying before the other
- Enables customizable low seed tank level warning alarms
Customizable tank level alarms – view tank 1, tank 2 and total seed volume on G5 DisplayEasy fluid transfer with the ExactRate™ fluid transfer system
24-row 1775NT Planter equipped with ExactRate fluid transfer systemThe ExactRate fluid transfer system pairs planters seamlessly with the ExactRate tractor tanks. It provides an easy connection point to allow transfer from the ExactRate tractor tanks back to the planter tank. This enables up 6056 L (1600 gal.)* of combined capacity between the tractor and planter tanks.
- Factory installed
- Designed and tested by John Deere to ensure the lines won’t pinch when folding
- Easily attaches to the ExactRate tractor tanks
ExactRate is available on the following models: 1775NT, 1795, DB44, DB60, and DB66.
*NOTE: 6056 L (1600 gal.) assumes a 2271-L (600-gal.) tank on a 24-Row 1775NT Planter as well as the 3785-L (1000-gal.) capacity on the 8RX Tractor.
Liquid Transfer AutomationSpend less time focusing on fertilizer tank transfers and reduce the chance of errors from losing prime in the ExactShot or ExactRate system and prevent overfilling the planter fertilizer tanks with Liquid Transfer Automation. SeedStar 5 planters running an ExactRate or ExactShot fertilizer system now have the option to automate the fertilizer transfer process from the tractor to the planter through setting an SCV assignment with Liquid Transfer Automation. Liquid Transfer Automation also allows farmers the ability to adjust auto fill set-points to help store the weight of the fertilizer on the tractor and off the planter, reducing compaction issue from full fertilizer tanks on the planter.
Liquid Transfer Automation is compatible with SeedStar 5 software only and planters equipped with ExactRate or ExactShot fertilizer systems with fertilizer level sensing.
Specifications
Key Specs
| Number of rows | 48 |
|---|---|
| Row spacing | 25.4 cm 20 in. |
| Frame - Fold configuration | Front fold |
| Frame - Flexibility | 3-section flex-frame; wing up and down 15 degree (angle) |
| Row unit seed hoppers | Capacity Mini hoppers: 2.2 L |
| Seed Meters | Base Vacuum |
Features
- Increase visibility at night with light-emitting diode (LED) lighting package
- Easily carry fluid on the planter with liquid tanks
- ExactRate™ fertilizer system
- SeedStar 5 enables new planting technology
- Mobile row-unit runoff
- Downforce system options
- Achieve accuracy with curve compensation
- Easy Adjust row cleaners
- John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
