John Deere 200 Seedbed Finisher
- Provides excellent residue handling
- Safety features come as base equipment
- Grease fitting guard allow access for lubrication
- Guide to transport dimensions
Description
Provides excellent residue handling
Seedbed finisher in bean ground

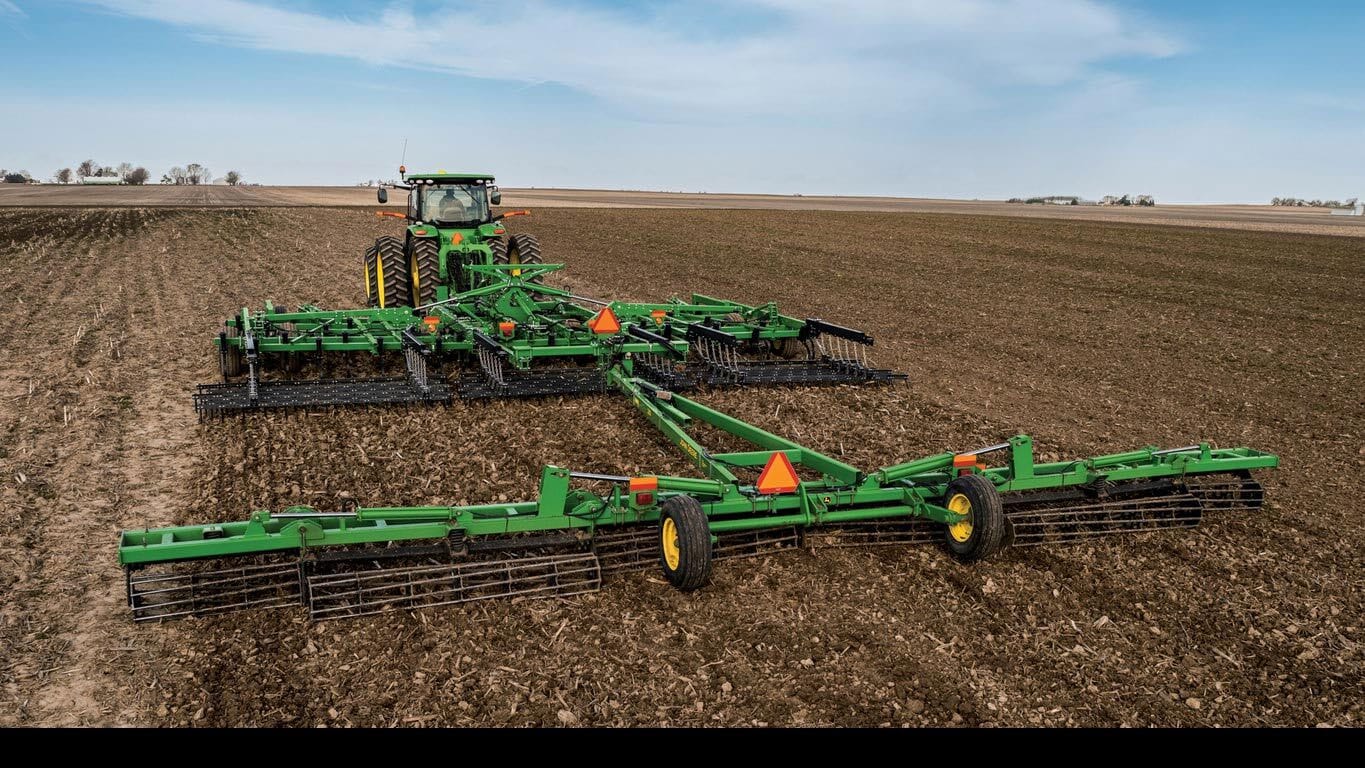

200 Seedbed Finisher with 2330 Mulch Finisher
The 200 Seedbed Finisher has excellent residue-handling capability in secondary tillage.
The rolling baskets and spiraling rods separate soil from root balls and uprooted weed clumps, providing a level surface for planting.
The spiraling rods are spaced to produce a soil texture to thwart crusting, firm the soil, and preserve moisture in the seed zone for good seed germination and early root growth.
Each section of spiral rollers is spring cushioned to place firm pressure uniformly over uneven soil surface, facilitating good penetration and leveling.
Simple tongue-length adjustment creates desired turning radius
Telescoping tongue
Turning radius
Tongue-length adjustments can be made with a simple pin adjustment on the 200 Seedbed Finisher. This makes it easy to create the desired turning radius.
Heavy-duty mainframe and wing frames provide added strength for improved leveling
Truss tube wing frame
200 Seedbed Finisher with 2330 Mulch Finisher
Heavy-duty 102-mm x 102-mm (4-in. x 4-in.) double-truss tube construction on the 200 Seedbed Finisher’s mainframe and wings provides added strength and down pressure for improved leveling and consistent rolling basket depth.
Grease fitting guard to minimize maintenance
Bearing grease fitting guard
Small stones may occasionally get trapped inside the rolling basket and damage the grease fitting. The attached guard utilizes the bearing flange bolts and wraps around the grease fitting to minimize damage. The guard is contoured to allow good access for lubrication.
Dura-Flex™ (3+1) bearings offer a field-proven solution
Dura-Flex bearings
200 Seedbed Finisher with 2330 Mulch Finisher
The rolling baskets on the 200 Seedbed Finisher are secured with Dura-Flex bearings featuring the following:
- Elimination of gang bolt, spacers, washer
- Triple-lip seal arrangement
- Self-alignment
- Elimination of internal bearing stress
Wing weight package to allow more aggressive leveling
In most applications, the weight of the base machine works extremely well with good leveling. However, for more aggressive action and more uniform weight distribution on the wings, two weight packages are available:
- The 136.4-kg (300-lb) weight package consists of 12 laser cut plates, six bolted to each wing end.
- The 272.7-kg (600-lb) weight package consists of 24 laser cut plates, 12 bolted to each wing end.
Specifications
Type
| Description | Seedbed Finisher |
|---|
Fold
| Type | 3-section; 5-section |
|---|---|
| mainframe - Option 4 | 5-section: 3.84 m 12.5 ft |
| mainframe - Option 1 | 3-section: 3.05 m 10 ft |
| mainframe - Option 3 | 5-section: 3.05 m 10 ft |
| mainframe - Option 5 | 5-section: 4.57 m 15 ft |
| mainframe - Option 2 | 3-section: 4.57 m 15 ft |
Roller Basket
| Gang mounting | Spring |
|---|---|
| Spiraling rods | Ten rods per roller, diameter: 2.22 cm 0.875 in. |
| Rollers | Internal web support, diameter: 35 cm 14 in. |
Tires, Wheels, And Spindles
| Tires | 9.5L - 15FI Load Range D tires and wheels |
|---|---|
| Spindles | Plug-in spindles with 6-bolt hubs, diameter: 5.72 cm 2.25 in. |
Key Specs
| Transport width | 4.37 to 5.87 m 14.33 to 19.25 ft |
|---|---|
| Working width | 6.1 to 13.72 m 20 to 45 ft |
| Minimum recommended tractor horsepower | 0.75 kilowatt per 0.305 meter of working width One horsepower per foot of working width |
Working Width
| Option 2 | 9.14 m 30 ft |
|---|---|
| Option 5 | 12.95-13.72 m 42.5-45 ft |
| Option 1 | 6.1 to 7.62 m 20 to 25 ft |
| Option 3 | 9.14 m 30 ft |
| Option 4 | 8.38-12.04 m 27.5-39.5 ft |
Transport Width
| Option 3 | 4.37 m 14.33 ft |
|---|---|
| Option 1 | 4.37 m 14.33 ft |
| Option 5 | 5.87 m 19.25 ft |
| Option 2 | 5.87 m 19.25 ft |
| Option 4 | 5.16 m 16.92 ft |
Hitch
| Description | Tube frame with adjustable clevis hitch, telescoping tongue, and storage stand: 7.62x15.2 cm 3x6 in. |
|---|
Frame (factory Assembled)
| Wing frame | Double truss tube welded frame: 10.2x10.2 cm 4x4 in. |
|---|---|
| Spring-cushioned gang | Tube: 7.62x7.62 cm 3x3 in. |
| Mainframe | Double truss tube welded frame: 10.2x10.2 cm 4x4 in. |
Miscellaneous
| Minimum recommended tractor horsepower | 0.75 kilowatt per 0.305 meter of working width One horsepower per foot of working width |
|---|
Features
- Working Depth: float
- Residue Conditions: light
- Working Speed: 6 to 10 mph (10 to 16 km/h)
- Depth Control: N/A
- Spacing Option: N/A
- Required HP (PTO)/FT: 1 hp (2.45 kw/h) working width
