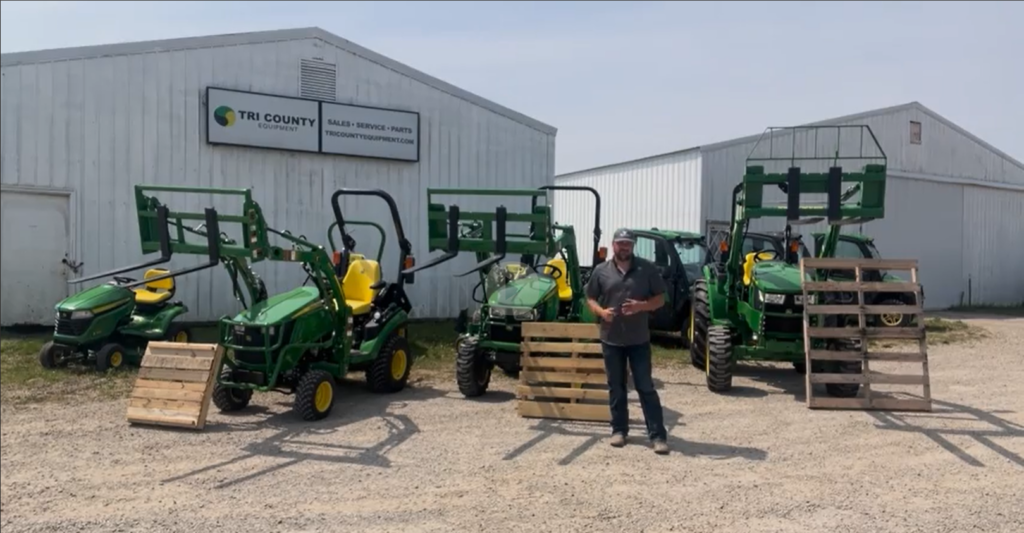

When it comes to compact tractor attachments, pallet forks are among the most useful tools you can add to your machine. From moving pallets and feed to handling logs, landscaping materials, and construction supplies, pallet forks can significantly increase the versatility of your tractor. Frontier offers three popular pallet fork options for compact utility tractors: the AP10F, AP11F, and AP12F. Choosing the right model depends on your tractor size, lifting needs, and the type of work you perform most often.
Start with Your Tractor’s Size and Loader Capacity
Before selecting a pallet fork, it’s important to match the attachment to your tractor and loader. While all three Frontier models are designed for material handling, each is built for a different range of tractors and lifting capacities.
The AP10F is designed primarily for John Deere 1 Series compact tractors and similar small-frame machines. The AP11F is commonly used on 1 Series through 3 Series tractors, while the heavier-duty AP12F is compatible with many 2 Series through 4 Series tractors. Matching the pallet fork to your tractor helps ensure safe operation and optimal performance.
Consider Tine Length
One of the biggest differences between the Frontier pallet fork models is tine length.
- AP10F: 36-inch tines
- AP11F: 42-inch tines
- AP12F: 48-inch tines
Shorter tines are often easier to maneuver in tight spaces and work well with smaller pallets. Longer tines provide additional support when handling larger pallets, bulky materials, or oversized loads. If you routinely move standard warehouse pallets or larger materials, the extra reach of the AP11F or AP12F can be a significant advantage.
Match the Fork to Your Lifting Requirements
Load capacity is another key factor when choosing a pallet fork.
The AP10F has a tine rating of 1,250 pounds, making it ideal for light-duty work on smaller compact tractors. The AP11F increases capacity to 2,000 pounds, offering additional strength for farm, landscaping, and property maintenance tasks. For the most demanding applications, the AP12F delivers a 3,750-pound capacity, making it an excellent choice for larger tractors and heavier material-handling jobs.
Keep in mind that your tractor’s actual lift capacity may be lower than the pallet fork’s rated capacity. Always follow manufacturer recommendations and never exceed your loader’s lifting limits.
Frame Design Matters
As you move from the AP10F to the AP12F, you’ll notice that the frame and back guard become progressively larger and more robust. The AP10F features a compact frame suited for lighter-duty applications, while the AP11F offers a taller design for added strength. The AP12F includes a larger, heavy-duty frame and guard designed to withstand the demands of larger loads and more challenging working conditions.
Frontier pallet forks are built with high-tensile, heavy-gauge steel construction, providing durability for years of use on farms, acreage properties, and commercial operations. Many models also feature adjustable tine positioning, allowing operators to quickly adapt to different pallet sizes without specialized tools.
Don’t Forget Proper Ballast
No matter which pallet fork you choose, proper ballast is essential for safe operation. Adding rear weight through loaded tires, a ballast box, or other approved counterweights helps maintain stability and improves overall handling when carrying heavy loads. Proper ballast can also reduce strain on your tractor and improve operator confidence when transporting materials.
Which Frontier Pallet Fork Is Right for You?
If you own a 1 Series tractor and primarily handle lighter loads, the AP10F is often the best choice. If you’re looking for greater versatility and capacity for a 1 Series, 2 Series, or 3 Series tractor, the AP11F offers an excellent balance of strength and maneuverability. For operators with larger compact tractors who frequently move heavy pallets, building materials, or bulk supplies, the AP12F provides the highest capacity and durability in the lineup.
At Tri-County Equipment, our team can help you determine which Frontier pallet fork best matches your tractor and workload. Whether you’re maintaining a small property, operating a farm, or tackling commercial projects, the right pallet fork can become one of the most productive attachments in your equipment lineup.
