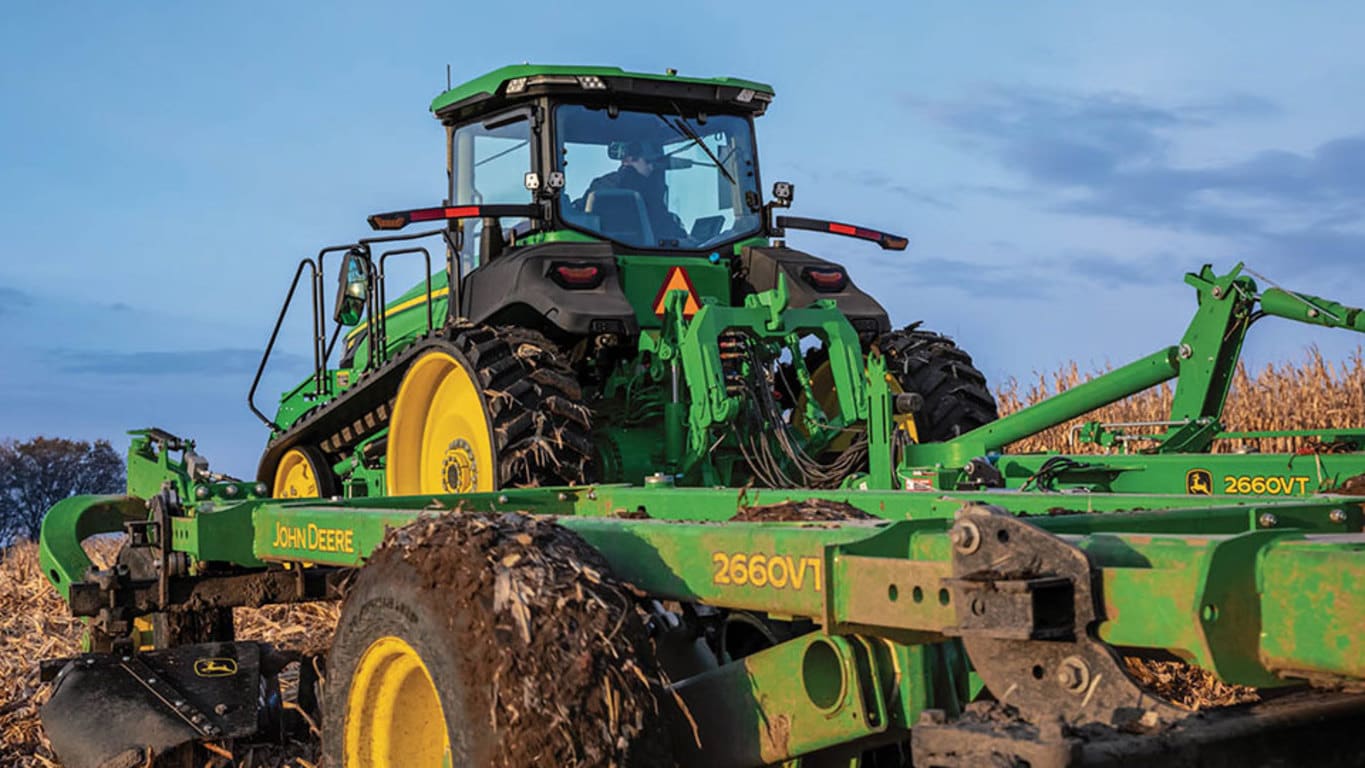

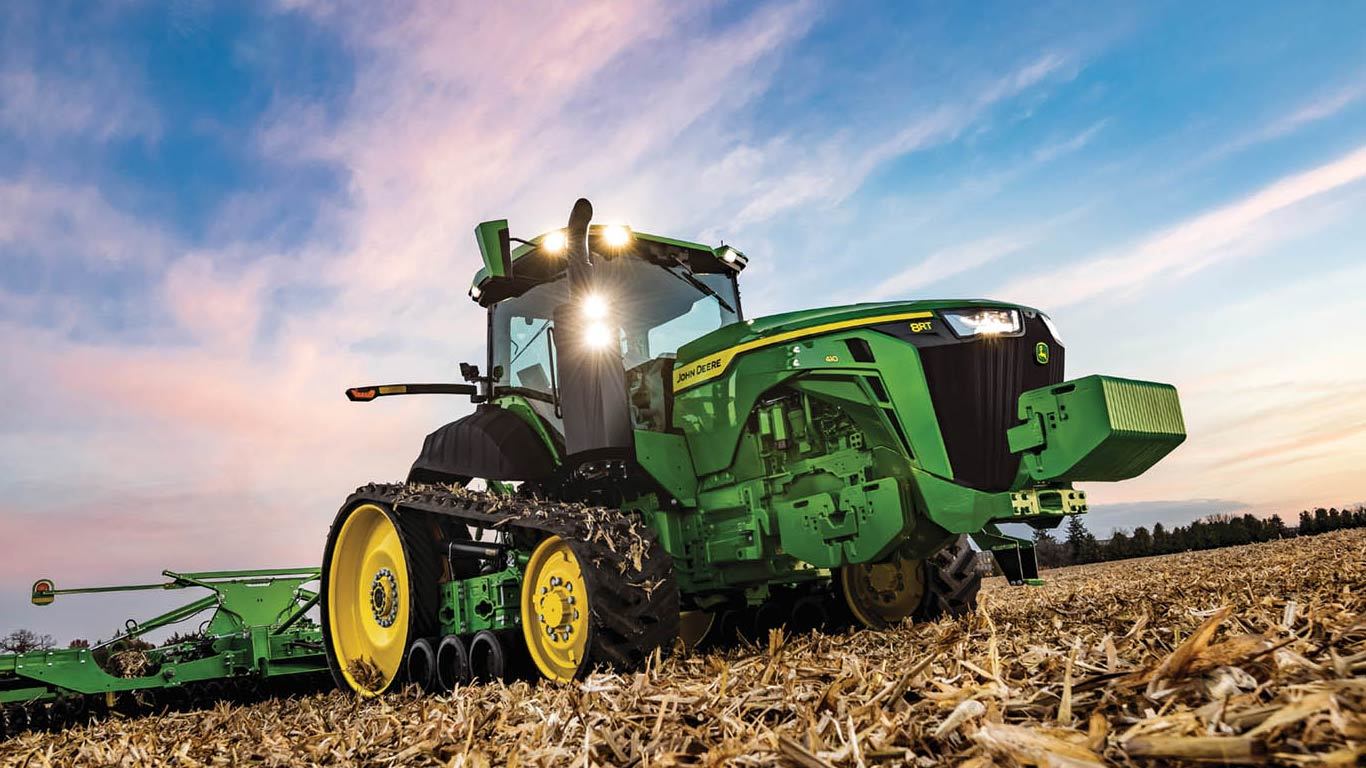

John Deere 8RT 340 Two-Track Tractor

Name: 8RT 340 Two-Track Tractor
Brand: John Deere

Row Crop Tractors

Value Your Trade Apply for Financing Loan Calculator Print Email Page

Get in Touch

(555) 555-5577

Request a Quote

View Locations

Engine hp¹: 374 Max | 340 hp Rated
Fully integrated precision ag technology
e23™ PowerShift Transmission or Infinitely Variable Transmission (IVT™)
AirCushion™ Suspension System
Three cab and visibility packages available to customize your tractor

¹Engine power PS (hp ISO) at max engine power speed (ECE-R120). John Deere Standard RES10080, SAE Standards J1995.

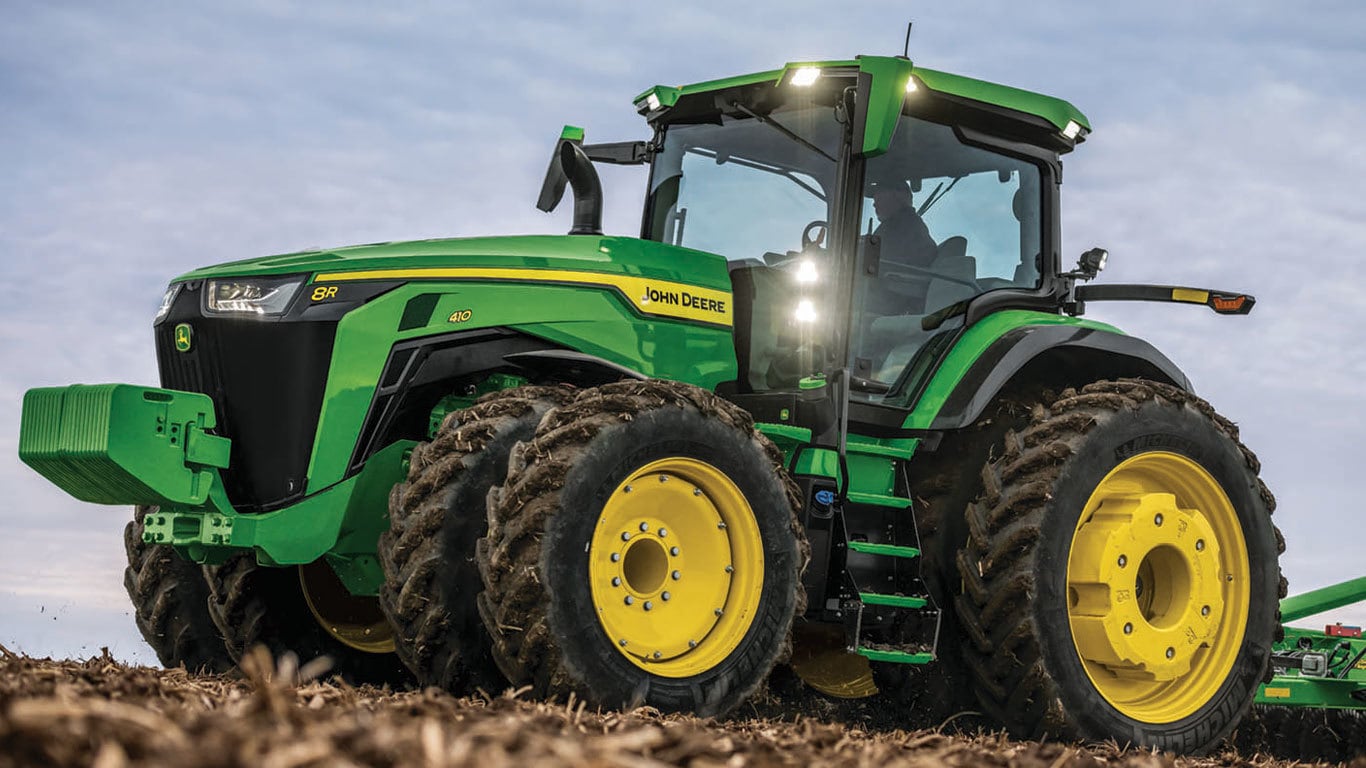

Ultimate Visibility package at night (shown on 8R)

Visibility is one of the most important attributes of the cab, but it is more than just lighting. In addition to lighting, John Deere visibility packages include mirrors, sunshades, wipers, and camera readiness. Some benefits of the visibility packages include:

Three package levels to fit your needs – Select, Premium, or Ultimate
Operate confidently with greater visibility
Ultimate Visibility package with more light-emitting diode (LED) output and full 360-degree illumination
Integrated camera capability

Visibility packages	Select	Premium	Ultimate
Lighting	18 halogen work lights	18 LED work lights	22 LED work lights and eight LED convenience lights*
Mirrors	Mechanical	Electric, heated	Electric, heated, and telescoping
Sunshades	Front	Front, right-hand side, and rear	Front, right-hand side, and rear
Wipers	Front and rear	Front, right-hand side, and rear	Front, right-hand side, and rear
Cameras	Camera ready	Camera ready	Camera ready**

*Convenience lights illuminate the corners of the cab for easier entry and exit
**Starting with model year 2022, the Ultimate visibility package is camera ready.

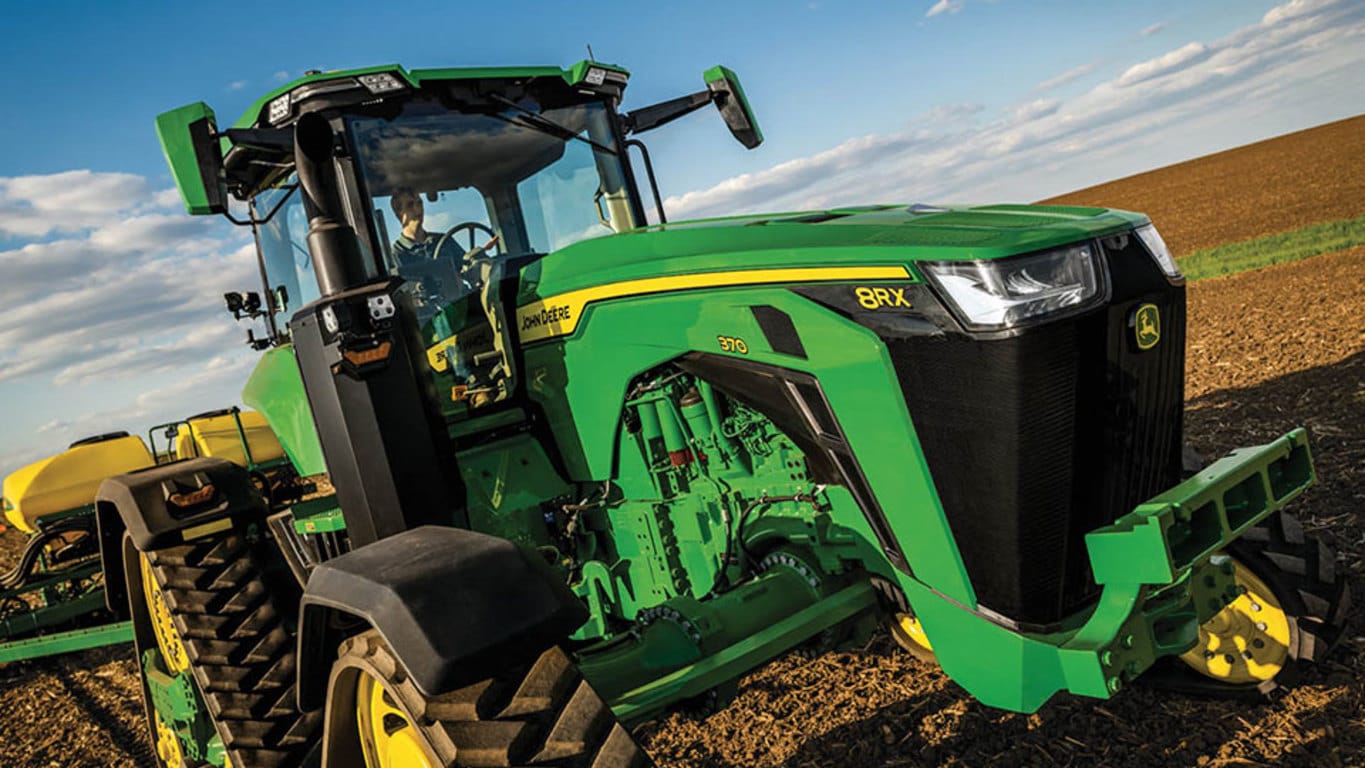

8RX and 8R Tractors in the field

All 8 Series Tractors come standard with an 85-cc (5.2-cu in.) hydraulic pump. This pump provides up to 227.1 L/min (60 gpm) hydraulic flow. A dual pump option featuring 85-cc and 35-cc (5.2-cu in. and 2.1-cu in.) displacement hydraulic pumps is available for all 8R and 8RX Tractors. The dual-pump system provides a hydraulic flow of 318 L/min (84 gpm), ideal for running at lower engine speeds. At the rear, up to six selective control valves (SCVs) are available with 1.9-cm (3/4-in.) options.

Single or dual pump options to fit specific producer applications
Up to 318 L/min (84 gpm) through the dual pump system on 8R and 8RX Tractors
Options from four to six factory-installed SCVs
For maximum flow, 1.9-cm (3/4-in.) SCV couplers are available factory and field installed

A power beyond option is available on all models, and a high-capacity take-out oil reservoir (on 8R Tractors only) is also available for high-demand applications.

8RX Tractor with power beyond

Maximizing uptime using connectivity and technology

Your needs and success are the focus of John Deere. John Deere makes it easy for you to benefit from having a connected tractor in your operation. All tractors come standard with JDLink™ telematics system and customers can turn on connectivity in the John Deere Operations Center™ application. With a StarFire™ 6000 Integrated Receiver* and Generation 4 CommandCenter™ Display, you can easily step right into advanced technology. If you’re an advanced tech user, you’ll enjoy the benefits of a highly intelligent machine connected to a full suite of solutions on the most open platform in the industry. Advantages of a connected machine include:

StarFire 6000 Integrated Receiver eliminates all setup, installation, and global positioning system (GPS) calibrations
AutoTrac™ assisted steering guides the machine with accuracy in a variety of field conditions
Automation is an option with some applications
John Deere Connected Support™ is a proactive service approach to improve service efficiency and reduce machine downtime
JDLink gives you access to information anytime, anywhere, to make data driven decisions with John Deere Operations Center and Documentation

The technology and connectivity in John Deere tractors allow you to optimize productivity, increase uptime, and boost profits with machine information from any device, anywhere.

StarFire 6000 Integrated Receiver	AutoTrac	JDLink
Base equipment: Generation 4 CommandCenter display StarFire 6000 Integrated Receiver Optional equipment: Generation 4 CommandCenter display plus extended monitor	Base equipment: AutoTrac activation SF3 accuracy (+/- 3 cm ) Data Sync Optional equipment: AutoTrac RowSense™* AutoTrac Turn Automation** AutoTrac Implement Guidance* Gen 4 Machine Sync	Base equipment: JDLink telematics system Wireless Data Transfer John Deere Connected Support service Expert Alerts Remote Display Access Service ADVISOR™ Remote service tool

*Available with Premium Activation 3.0
**Available with Automation Activation 3.0

8RT Tractor with cab suspension and air seat

8RT Tractors naturally offer excellent in-field ride due to the large footprint and an AirCushion™ suspension system. A great ride is also enabled by the lack of power hop due to the track system. 8RT Tractors are equipped with a four-post cab suspension and air seat that is specifically designed for and only found on these models. This system reduces high-frequency vibrations typically associated with road transport and allows 8RT Tractors to strike an unmatched balance in ride quality in the field or on the road. Both the cab suspension and AirCushion suspension are in base equipment on all 8RT Tractors.

Four-post cab suspension with an air seat offers an exceptional ride for operators while on the road.
The cab suspension system specifically designed for 8RT Tractors is offered in base equipment.
8RT Tractors naturally ride well in the field due to the independent track systems and a large footprint.
The AirCushion suspension system not only improves ride quality in the field but also allows the track systems to move freely and independently of the other, maximizing track-to-soil contact and improving overall traction.

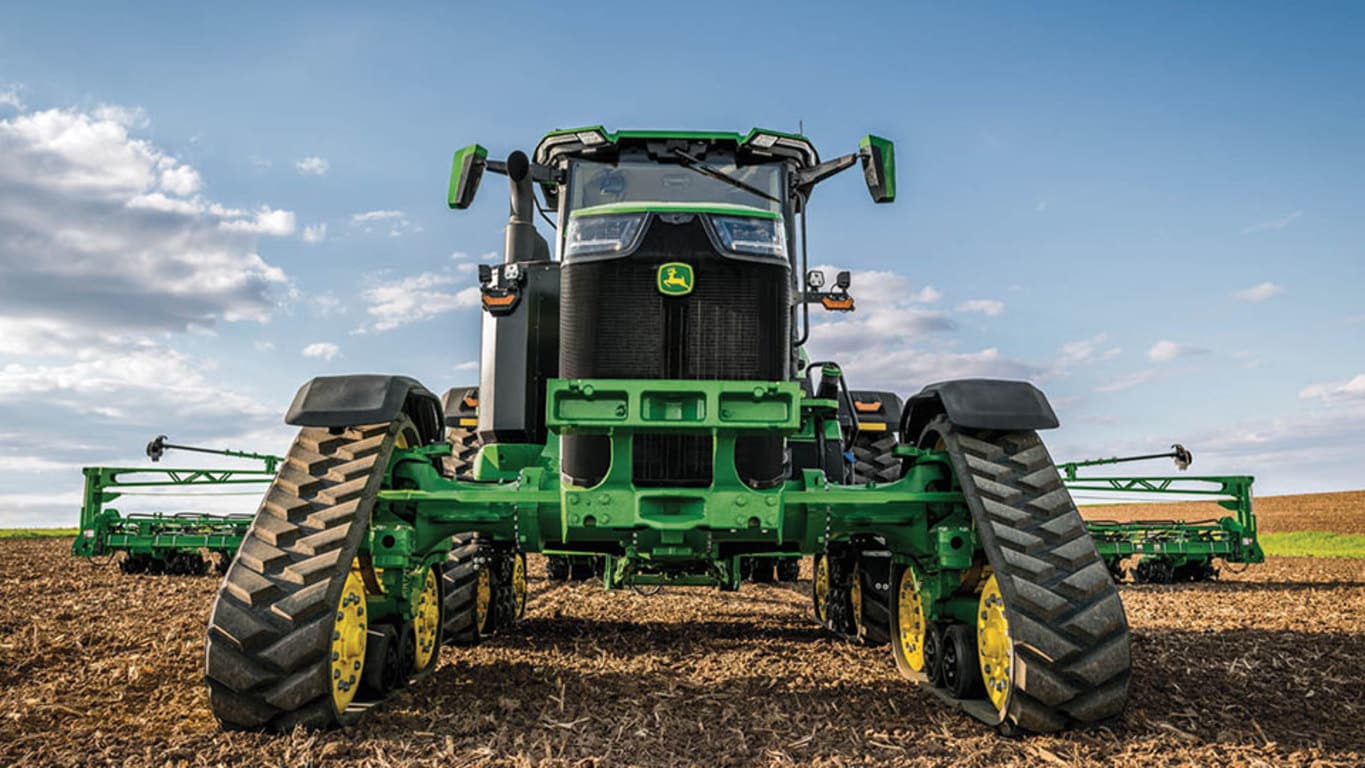

AirCushion suspension on 8RT Tractors

Connected Support technology

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
Saves time by remotely viewing in-cab displays, reducing trips to the machine
Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

Ultimate Comfort and Convenience package (shown on 8R Tractor)

Comfort and Convenience packages

When you reach a 40-hour week by Wednesday, you’re logging some serious hours in the cab. Spend that time in the refreshed and refined John Deere cab, and experience a quiet, comfortable ride with unrivaled visibility and convenience.

Three package levels to fit your needs – Select, Premium, or Ultimate
CommandARM™ console that puts everything you need within reach
Plenty of storage
Work comfortably during long days in the field with an automotive-style seat
Keep electronics powered throughout the day with a variety of outlets

Comfort and Convenience packages	Select	Premium	Ultimate
Seat	Cloth Mechanical controls Mechanical lumbar 8-degree left-hand and 40-degree right-hand swivel	Cloth Electronic controls Pneumatic lumbar 25-degrees left-hand and 40-degree right-hand swivel	Leather Electronic controls Pneumatic lumbar 25-degree left-hand and 40-degree right-hand swivel Heated/ventilated Massage Adjustable bolsters
Infotainment	AM/FM/WX Auxiliary and Bluetooth® wireless inputs Four speakers	16.5-cm (6.5-in.) touchscreen radio, XM® ready Six speakers with subwoofer	16.5-cm (6.5-in.) touchscreen radio, XM ready Six speakers with subwoofer
Business band ready	X	X	X
Four USB and one 12-V outlet	X	X	X
Dual tilt column	X	X	X
Footrests	—	X	X
Refrigerator	—	X	X
120-V/300-W three-prong outlet	—	X	X
Carpeted floor mat	—	—	X
Leather-wrapped steering wheel	—	—	X

Bluetooth is a trademark of Bluetooth SIG, Inc. XM is a trademark of Sirius XM Radio Inc.

Select a category to view specifications (or view all).

Operator Station

Cab suspension	Standard: four-post cab suspension
Radio	Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Instructional seat	Standard
Display	Standard: 4600 Generation 4 CommandCenter™: 25.4 cm 10 in.
Inner cab volume	3.24 m³ 114 cu ft
Seat	Degree of seat swivel, left hand 25 degree (angle) Degree of seat swivel, right hand 40 degree (angle) Standard: air suspension
Cab glass area	6.52 m² 70.18 sq ft

Rear Power Take-off (pto)

Multispeed PTO option availability	Available: 45-mm (1.75-in.), 1000-rpm and 1000E economy rpm PTO, in-cab shiftable
PTO actuation	Electrohydraulic with adjustable modulation
Engine rpm (at rated PTO speeds)	IVT: 1,000 PTO rpm at 2,000 engine rpm, 1,000 ECO PTO at 1594 engine rpm, 540 PTO rpm at 1,814 engine rpm e23 PowerShift: 1,000 PTO rpm at 1,995 engine rpm, 1,000 ECO PTO at 1,590 engine rpm, 540 PTO rpm at 1,810 engine rpm
Type	Independent Standard: 44 mm (1.75 in.) 20-spline, 1,000 rpm Optional: 44 mm (1.75 in.), 20-spline, 1,000 rpm capable of 35 mm (1.375 in.) 540/1000 rpm 44 mm (1.75 in.) 20-spline, 1,000 rpm/1,000E rpm

Serviceability

Interval for engine coolant change	6,000 hours
Interval for hydraulic/transmission oil change	1,500 hours
Interval for engine oil change	500 hours

Engine Specifications

After treatment type	Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR)
Rated speed	2100 rpm
Cylinders liners	Wet-sleeve
Aspiration	Single, variable geometry turbo; air-to-air aftercooling and cooled exhaust gas recirculation
Emission level	Final Tier 4
Engine family	MJDXL09.0333
Description	John Deere PowerTech 9.0 L (B20 diesel compatible)
Engine type	In-line six, four valve
Displacement	9.0 L 549 cu in.

Engine Performance

Power boost	10 percent
PTO torque rise	40 percent
Maximum engine power	ECE-R120: 275 kW 374 hp
Rated power	ECE-R120: 250 kW 340 hp
Rated PTO power (hp SAE)	211 kW 284 hp
Engine peak torque	At 1600 rpm: 1592 Nm 1174 lb-ft

Rear Hitch

Sensing type	Electrohydraulic
Hitch category (SAE designation)	Standard: Category 4N/3 standard lift at 610 mm (24 in.) behind hitch point: 9072 kg 20,000 lb Optional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6803 kg 15,000 lb
Maximum lift capacity behind lift points	Standard (at 610-mm behind hitch point): 12,124 kg 26,729 lb

Hydraulic System

SCV control	Electronic
Type	Closed-center, pressure/flow compensated system with load sensing
Available flow at a single rear SCV	1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) coupler: 159 L/min 42 gpm
Pump rated output	Standard: 85-cc pump: 227.1 L/min 60 gpm
Number of rear selective control valves (SCVs)	Standard: 1.3-cm (1/2-in.) ISO couplers: 4 Optional: 1.3-cm (1/2-in.) ISO couplers: 5 and 6 available 1.9-cm (3/4-in.) ISO coupler: 1

Electrical System

Total cold cranking amps	1,850 CCA
Battery options	12 V
Alternator size	Standard: 200 amp Optional: 330 amp
Type of bulb in headlight (Halogen, Zenon, LED)	Standard: halogen, 65 W Available: LED
Working lights	Standard: 18 halogen Available: 18 LED 22 LED

Rear Axle

Final drive type	Inboard planetary three pinion

Miscellaneous

Country of manufacture	USA

Steering

Type	Standard: Hydraulic power-steering with electric pump backup

Precision Ag

Remote diagnostics	JDLink hardware standard
Telematic	JDLink™ hardware standard, activations, and Ethernet harnesses (availability dependent upon destination)
Guidance	Integrated AutoTrac™

Tracks

Mid-rollers	Three
Drive type	Camso® 4500 and 6500 General Ag Series - friction drive track belts
Tread spacing	Standard: 1828.8 to 3048 mm 72 to 120 in.
Track width	Standard: 635 mm 25 in. Available: 419 mm 16.5 in. 457 mm 18 in. 609 mm 24 in. 762 mm 30 in.

Additional Information

Date collected	12 January 2022

Capacities

Crankcase oil volume	25.7 L 6.8 U.S. gal.
Diesel exhaust fluid (DEF) tank	31.3 L 8.3 U.S. gal.
Transmission-hydraulic system	197 L 52 U.S. gal.
Fuel tank	764 L 202 U.S. gal.
Cooling system	42.3 L 11.2 U.S. gal.

Key Specs

Transmission type	Standard: e23™ PowerShift™ with Efficiency Manager™ 40K, 40 km/h 24.9 mph Optional: John Deere AutoPowr™ IVT™ 40K, 0.05-42 km/h 0.03-26 mph
Rear hitch category (SAE designation)	Standard: Category 4N/3 standard lift at 610 mm (24 in.) behind hitch point: 9072 kg 20,000 lb Optional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6803 kg 15,000 lb
Rated PTO power (hp SAE)	211 kW 284 hp
Engine displacement	9.0 L 549 cu in.
Base machine weight	e23, 63.5-cm (25-in.) tracks: 15,600 kg 34,400 lb
Maximum engine power	ECE-R120: 275 kW 374 hp
Hydraulic pump rated output	Standard: 85-cc pump: 227.1 L/min 60 gpm
Engine description	John Deere PowerTech™ 9.0 L (B20 diesel compatible)
Rated engine power	ECE-R120: 250 kW 340 hp

Weight

Maximum permissible weight	18,200 kg 40,100 lb
Base machine weight	e23, 63.5-cm (25-in.) tracks: 15,600 kg 34,400 lb
Maximum ballast level	17,700 kg 39,000 lb

Drawbar

Drawbar category	Standard: Category 4 Optional: Category 4 with heavy-duty support
Maximum vertical load	Standard: 2245 kg 4950 lb Optional (dependent on drawbar position): 4990 kg 11,000 lb

Transmission

Type	Standard: e23 PowerShift with Efficiency Manager 40K, 40 km/h 24.9 mph Optional: John Deere AutoPowr IVT 40K, 0.05-42 km/h 0.03-26 mph

Features

PTO HP: Rated: 273 hp (203 kW)
Ride Comfort: AirCushion Suspension and 4-Post Cab Suspension
Transmission: e23 23F/11R PowerShift Transmission with Efficiency Manager; IVT available with CommandPRO control
Hydraulics: Closed-center, pressure and flow compensated with 4 standard SCV (5 and 6 available); hydraulic flow up to 60 gpm (227L)
Track Width and Tread Spacing: 16.5 in., 18 in., 24 in., 25 in., or 30 in. tracks 72-160 in. (in 4 in. increments)
Engine HP¹: Max: 374 hp (275 kW) Rated: 340 hp (250 kW)

Description

Maximize around-the-clock productivity with visibility packages
